Product Details
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-120
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Material: |
PC ,ABS |
Motor Brand: |
Famous Brand |
Inverter Brand: |
ABB |
Capacity: |
300-400kgs/hr |
Warranty: |
One Year |
Quality Grade: |
Class A |
Material: |
PC ,ABS |
Motor Brand: |
Famous Brand |
Inverter Brand: |
ABB |
Capacity: |
300-400kgs/hr |
Warranty: |
One Year |
Quality Grade: |
Class A |
The part of customer list in mainland China
(luggage sheet machine,luggage shell forming machine)
Most of them are the famous brand in China

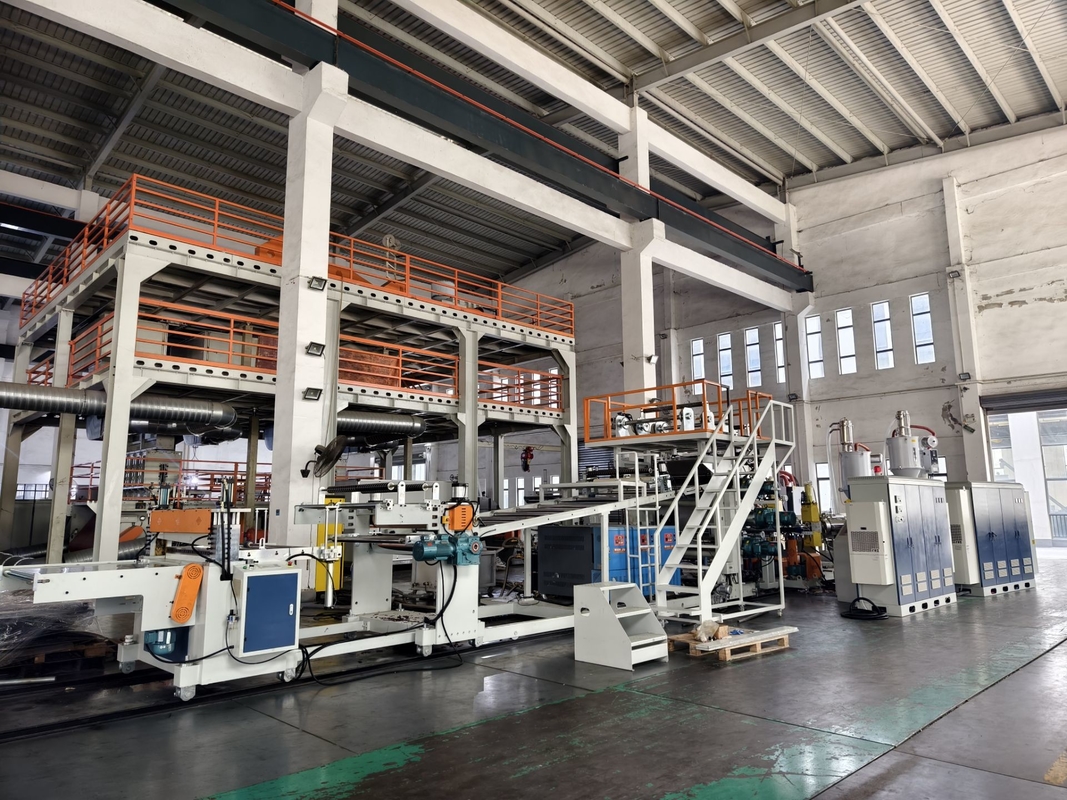

Main parameters:
Processed material: PC resin, ABS resin, and PC regrind
Width of the sheet: 900mm
Sheet thickness: 1.5-4mm
Production line dimension:18000mm×8000mm×3000mm
Machine voltage: 380V/50HZ
1.0 Φ120*35 single screw extruder: 1 set
200KG hopper dryer: one set
Gearbox: (one set)
The body of the gearbox is made from cast steel. The teeth deal with grinding and peeling eventually, which provides damping, antifriction, low-noise, long using period etc. characteristics.
Screw: (one set)
Diameter:120mm
Screw structure: Vented
Material: High quality nitrided alloy steel-38CrMoAIA,
Treatments: Nitration hardness≥ 740HV; Nitration depth: 0.3-0.6mm; fragility is 2 grades.
Barrels: (one set)
Material: High quality nitrided alloy steel-38CrMoAIA
Treatments: Nitration hardness≥ 940HV; Nitration depth: 0.4-0.7mm; fragility is 2 grades
Motor power: 165kw (A.C MOTOR)
2.0 Φ80*35 single screw extruder ( one degassing hole): 1 set
100KG hopper dryer: one set
Gearbox: (one set)
The body of the gearbox is made from cast steel. The teeth deal with grinding and peeling eventually, which provides damping, antifriction, low-noise, long using period etc. characteristics.
Screw: (one set)
Diameter:80mm
Screw structure: Vented
Material: High quality nitrided alloy steel-38CrMoAIA,
Treatments: Nitration hardness≥ 740HV; Nitration depth: 0.3-0.6mm; fragility is 2 grades.
Barrels: (one set)
Material: High quality nitrided alloy steel-38CrMoAIA
Treatments: Nitration hardness≥ 940HV; Nitration depth: 0.4-0.7mm; fragility is 2 grades
Motor power: 90kw (A.C MOTOR)
3.0 Φ55*33 single screw extruder ( one degassing hole): 1 set
75KG hopper dryer: one set
Gearbox: (one set)
The body of the gearbox is made from cast steel. The teeth deal with grinding and peeling eventually, which provides damping, antifriction, low-noise, long using period etc. characteristics.
Screw: (one set)
Diameter:55mm
4.0 Single flow, double hole screen changer: 3 sets
Its special internal structure provides a excellent seal effect
The parts of Screen changer consisting the mould are made of alloy steel, which experienced heat treatment strictly.
Control style: complete hydraulic pressure
5.0 Melt pump: one set ( for 120mm extruder)
Flow: 150cc/min
The pump body is made of super alloy steel experienced heat treatment and Chrome plating and polishing treatment.
6.0 Melt pump: one set ( for 80mm and 55mm extruder)
Flow: 50cc/min
The pump body is made of super alloy steel experienced heat treatment and Chrome plating and polishing treatment.
7.0 Pressure sensor: 9 sets
Before screen changer: 3 sets ( adopt Chinese brand)
After screen changer: 3 sets ( adopt Chinese brand)
Melt pump: 3 sets (Dynisco company)
8.0 High temperature feed block: 1 set
9.0 Sheet co-extruiso T-die: 1 set
Material of the mould board is heat resistance alloy steel imported, experienced hardness treatment for the mould board, and the surface of the flow tunnels are plated rigidity chrome and polished; the appearance of the mould is in decorating plated chrome. It adopts the heating inside by bar heaters.
Total heating power for the flange: 3kw
The effective width of the mould: 1200mm
The effective product width:900mm (both sides have decking units, can produce 500mm width product)
10.0 Calender roller stack: 1 set
Structure: vertical
Diameter of roll:450mm
Roll length:1200mm
Wall thickness of the roller: ≧28-30mm
Centre flat depth:5mm
Roll material: alloy
Hardness excluding the surface: HRC60-65(2-3mm)
11.0 Single side laminating unit: 1 set
Hot laminating: one set ( double shafts)
Stair: one set
12.0 Protection film laminating frame: 1 set
Protection film frame: one set
Steel roller: 1 pc
Rubber roller: 1 pc
13.0 Cooling stand: 1 set
Guide roller: 16 pcs
Diameter of the rollers: Φ68mm
Roller surface treatment: plated chrome and half-mirror polishing
Surface treatment: hard chrome plating and half-mirror treatment
Roller length: 1200mm
Cooling length stand length: 6m
14.0 Take-up machine: 1 set
Steel roller: 1 pc
Steel roller diameter:Φ240mm
Steel roller surface treatment:hardness chrome plating and polishing to half mirror.
Rubber roller: 1 pc
Rubber roller diameter::Φ240mm
The lenght of roller: 1200mm
The surface of treatment of the rubber rollers: corrosion resisting, polishing the rubber
The reducer adopt SEW brand
Equipped with a 3.0kw inverter
Equipped with a synchronousadjusting system with calender rollers,also equipped a individual adjusting system of take up machine
15.0 Cutting machine and belt conveyor: 1 set
Discharge machine: one set ( adopt guide roller type, horizontal conveying)
Discharge method: belt conveyor
The reducer and motor adopt China famous brand
16.0 Vertical electric control cabinet: 1 set
Large scale cabinet, including locks, Security identity
12 inch control panel: one set (Siemens)
Siemens PLC (Siemens)
| S.N | EQUIPMENT | QTY | UNIT | ||
| 1 | AF120*35&80*35&55*33- 900 three layers PC luggage sheet extrusion machine | 1 | SET | ||
| 2 | AFCJ-PC luggage vacuum forming machine(rotary type) | 1 | SET | ||
| 3 | PC luggage dehumidification & drying system | 1 | SET | ||
| 4 | AFF-28 Edge cutting machine | 1 | SET | ||
| 5 | vertical mixer | 1 | SET | ||
| 6 | 50HP crusher | 1 | SET | ||
| GRAND TOTAL:RMB (17% VAT),EX works | |||||
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 30 years.
Other machines have included machines in production line, such as luggage edge cutting machine and punching machine.
(We can produce total production line. )
3. Q: What's the material should have for our extruder machine( produce luggage purpose)
A: ABS. PC. PP.PE.PS.PET.HIPS granulates etc plastic material can do.
4. Q: How's your strength of your company?
A: Has a group of senior technical personnels, strong technical force, we have the
whole running system, including design, development, production, installation,service.
One year quality guarantee, life-time service.
5. Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
About Us
Packaging and shipping
| PACKAGING |
plastic film + stretch film + wooden case + drying agent.
|
| DELIVERY |
About 120 days (all new parts)
|
| SHIPPING |
We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
|
What is our service system?
| PRE-SALE |
a. Detailed machine introduction;
|
| IN PRODUCTION |
a. Supply layout drawing to clients for preparation;
|
| AFTER SALE |
a. Send engineers to overseas for installation ,commissioning and training;
|
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
