Product Details
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 65
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Plastic Processed: |
PVC, PP, ABS |
Application: |
Profile |
Screw Design: |
Single-screw |
Warranty: |
1 Year |
Screw: |
65mm |
LD: |
28:1 |
Plastic Processed: |
PVC, PP, ABS |
Application: |
Profile |
Screw Design: |
Single-screw |
Warranty: |
1 Year |
Screw: |
65mm |
LD: |
28:1 |
PP PVC ABS Luggage Sealing Gasket Plastic Profile Extrusion Machine

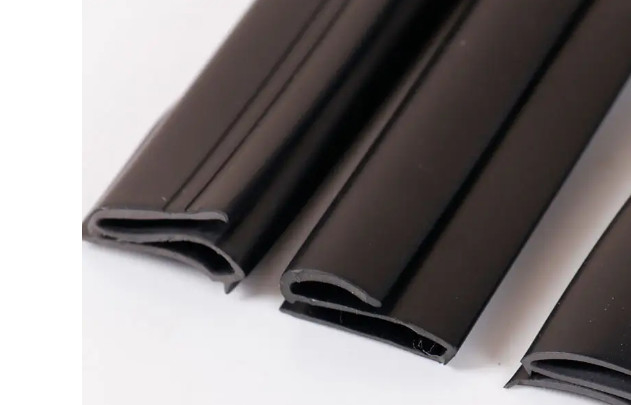

The main functions of luggage edging strips include protecting the edges of luggage, enhancing durability and aesthetics. By covering the edges of the suitcase, the edging strips can effectively prevent the edges from wear and tear and scratches, thus prolonging the service life of the suitcase. Additionally, edgebanding strengthens the structural strength of the suitcase, prevents the internal materials from being exposed, and protects the contents of the suitcase by preventing the ingress of dust and moisture.
Material and Characteristics of the Edge Band
Luggage edging strips are usually made of materials such as PVC, PU or PP . These materials are lightweight, strong, waterproof and dustproof, and can protect the edges of the luggage well, and are easy to clean and maintain.
Φ65 soft PVC luggage bag sealing strip extrusion line:
1).Φ65 extrusion main machine:
Stainless steel down hopper 1
a. The gearbox is made of cast steel and the gears are made of alloy steel and processed by grinding teeth, which makes the whole machine have the advantages of vibration damping, low noise, wear-resisting and long service life. Each lubrication point in the box adopts forced lubrication mode, and the gearbox is equipped with high efficient water cooling system.
b, screw material using 38CrMOALA high-quality nitriding steel, and nitriding treatment, nitriding depth: 0.3 ~ 0.6mm, nitriding hardness ≥ 740HV, brittleness of 2 levels.
c, the barrel material using 38CrMOALA high-quality nitrided steel, and nitriding treatment, nitriding depth: 0.4 ~ 0.7mm, nitriding hardness ≥ 940HV, brittleness of 2.
d, the barrel is equipped with preheating cooling device, easy to screw barrel temperature control, barrel heating for stainless steel heater, easy to control the temperature between the region of the control is accurate, each zone is equipped with an independent switch.
e,Screw diameter: Φ65mm
f. Screw length/diameter ratio: 28:1
g,Screw form: special screw (for soft PVC granule material)
h. Main motor power: 22KW
Domestic famous brand motor control
i. Control form: inverter control
Adopt Huichuan inverter control
j. Constant temperature zone: 7 zones
Adopt Taiwan AHUD temperature control meter control
k. Heat dissipation area: 4 areas
Adopt high efficiency cooling low noise fan, cooling power: 0.18KW * 4
l,Electrical control cabinet set
Adopt Taiwan Taiwan Anshilin AC contactor control
2). 6 meters of stainless steel cooling water tank :one set
a, a set of water tank frame
b, stainless steel circulating small water tank
c, 0.37KW water pump a
3). 1 meter belt tractor one set
a. 2 upper and lower belts
b, control power: 1.5KW
c, using domestic famous brand motor control
c, control form: inverter control
d, using Huichuan or ABB frequency converter control
e,Mechanical line speed about 1-6 meters/minute
4). Double-station rewinding machine: one set
a. Winding station: 2pcs
b. Control form: frequency conversion control
5). Others:
a. Equipment extrusion volume: 50-60 kilograms per hour
b. Equipment covers an area of about: 12000*1300*1680(L*W*H)
c, installed capacity of about: 45.2KW (the actual operating power consumption of about 60%) according to the actual model shall prevail!
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 30 years.
Other machines have included machines in production line, such as luggage edge cutting machine and punching machine.
(We can produce total production line. )
3. Q: What's the material should have for our extruder machine( produce luggage purpose)
A: ABS. PC. PP.PE.PS.PET.HIPS granulates etc plastic material can do.
4. Q: How's your strength of your company?
A: Has a group of senior technical personnels, strong technical force, we have the
whole running system, including design, development, production, installation,service.
One year quality guarantee, life-time service.
5. Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
About Us
Packaging and shipping
| PACKAGING |
plastic film + stretch film + wooden case + drying agent.
|
| DELIVERY |
About 120 days (all new parts)
|
| SHIPPING |
We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
|
What is our service system?
| PRE-SALE |
a. Detailed machine introduction;
|
| IN PRODUCTION |
a. Supply layout drawing to clients for preparation;
|
| AFTER SALE |
a. Send engineers to overseas for installation ,commissioning and training;
|
Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
