Product Details
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-55
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Screw Size: |
55mm |
Color: |
Single Color |
Machine Capaicty: |
30-50kg/hr |
Raw Materials: |
PE ,PP |
Screw L/D: |
28:1 |
Warranty: |
1 Year |
Screw Size: |
55mm |
Color: |
Single Color |
Machine Capaicty: |
30-50kg/hr |
Raw Materials: |
PE ,PP |
Screw L/D: |
28:1 |
Warranty: |
1 Year |

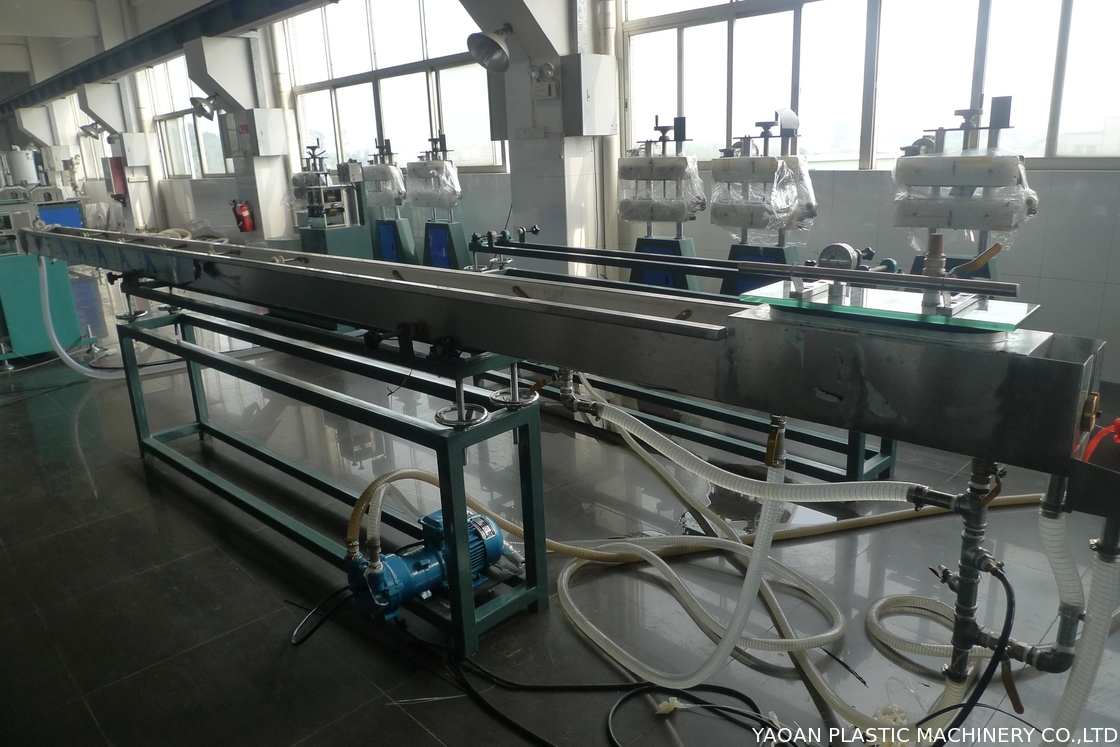

LDPE Pipe Extrusion Machine For Perfume Pump Sprayer
1.This series equipment select single screw type main extruder ,cooling system.They are made of online precise checking system,professional servo cutting machine,etc. and applied to cleaning workshop in the line of medical treatment,electronics,etc.
2.The screw is professinal designed,ensure the stable.
3.The main engine,haul-off unit and cutting parts all under program control which dispaly in the digital screen.
4. High speed HDPE extrusion production line
5.For perfume pump sprayer
6.Single screw extruder PE pipes for perfume pump sprayer
| Model | AF-55 | |
| Feature | Material | PP PE |
| Color | 3 | |
| Straw diameter | φ3.0 ~ φ12 mm | |
| thickness | 0.10 ~ 0.35 mm | |
| Straw length | 80 ~ 300 mm | |
| Stripes | Straight / Helical | |
| Capability | 400 ~ 1800 pcs/min | |
| Extruding output range | 20 ~ 40 kgs/hr | |
| Extruder | Main Screw diameter | φ50 mm ( BM Screw) |
| Screw L/D | 28 : 1 | |
| Main driving motor | 11 Kw (VFD) | |
| Vice screw diameter | φ25 mm×2 | |
| Vice driving motor | 0.75Kw ×2(VFD) | |
| Gearbox | ZLY133 | |
| Automatic thermo-controller | 11 sets | |
| Heating power | 14.75 kw | |
| Water cooling tank | Forming device | 1 set |
| Vacuum Pump motor | 1.1 kw(choose) | |
| Water storage tank | (length)3400 mm /304 Steel stainless | |
| Base frame material | (304 Steel stainless) | |
| Blow dry device | 1 set | |
| Take up & Cutting Unit | Take up unit | 1 set |
| motor | 0.75kW×1(VFD) | |
| Cutting knife unit | 1 set | |
| motor | 0.75kW×1(VFD) | |
| angle of port | 90°/60°/45° | |
| Digital counter | 1 set | |
|
Others |
Air compressor | 1.5kw(choose) |
| Dimension LxWxH | 8m×1.4m×1.6 m | |
| Machine weight | 2300 kgs | |
SPECIFICATIONS
1.To create a space that customers can make a reasonable plan with less cost
2.We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
3.We provide the mounting dimension of the equipment base, design of equipment layout, workshop ventilation, water transmission etc.
1. we are responsible for installation, debugging and training, you just pay for the engineer’s air tickets, eating, housing and 80 dollars each day.
2. provide service manual and maintenance instruction of main electric appliance, limb, usage manual of equipment. We also supply water, electricity, gas of equipment and installation drawing.
3. 12 months for warranty.
4. Fittings of the machine will be supplied at preferential price after one year .
